| 自來水用管--給水配件 |

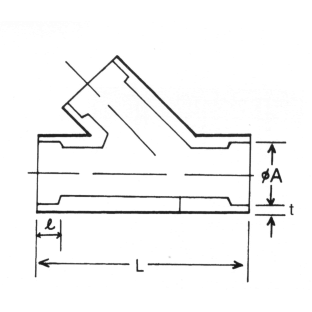

| 45o
ㄚ型三通 |
|
|
|
MSF-18 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
L |
 |
t |
產品代號 |
| 63 |
2" |
63.2 |
175.3 |
39.0 |
4.8 |
MSF-18063 |
| 90 |
3" |
90.3 |
245.3 |
53.0 |
6.7 |
MSF-18090 |
| 110 |
4" |
110.4 |
307.5 |
62.3 |
8.2 |
MSF-18110 |
| 160 |
6" |
160.5 |
395.0 |
86.1 |
12.0 |
MSF-18160 |
|
|

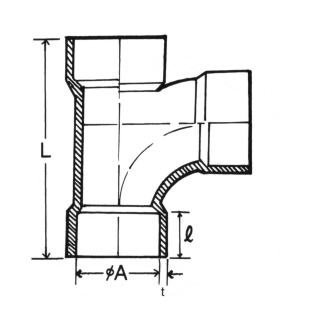

| 等徑順T |
|
|
|
MSF-26 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
L |
|
t |
產品代號 |
| 63 |
2" |
63.3 |
169.4 |
39.0 |
4.7 |
MSF-26063 |
| 90 |
3" |
90.3 |
277.0 |
65.3 |
6.7 |
MSF-26090 |
| 110 |
4" |
110.4 |
248.7 |
63.8 |
8.2 |
MSF-26110 |
| 160 |
6" |
160.5 |
395.0 |
96.0 |
11.9 |
MSF-26160 |
|
|

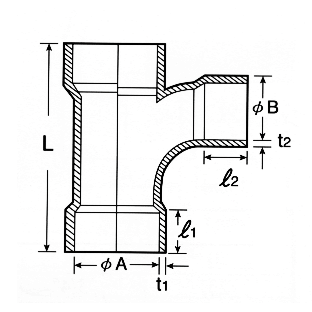

| 異徑順T |
|
|
|
MSF-26 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
ΦB |
L |
1 |
2 |
t1 |
t2 |
產品代號 |
| 110x63 |
4"x2" |
110.4 |
63.3 |
227.3 |
64.1 |
38.6 |
8.2 |
4.8 |
MSF-26034-1 |
|
|
|
