| 自來水用管--給水配件 |

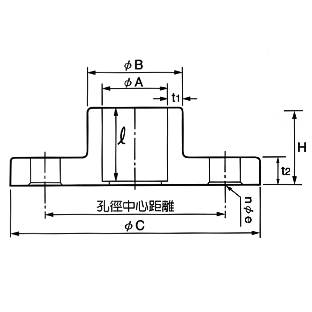

| 法蘭接頭 |
|
|
|
|
MSF-16 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
ΦB |
ΦC |
t1 |
t2 |
H |
 |
nΦe |
孔徑中心距離 |
產品代號 |
| 25 |
3/4" |
25.2 |
34.6 |
101.0 |
4.8 |
10.3 |
40.0 |
35.0 |
4 |
75.5 |
MSF-13020 |
| 50 |
1
1/2" |
50.2 |
63.0 |
100.0 |
6.2 |
15.0 |
40.0 |
33.2 |
4 |
107.0 |
MSF-13025 |
| 63 |
2" |
63.2 |
72.9 |
161.5 |
5.2 |
14.5 |
68.0 |
41.8 |
4 |
120.4 |
MSF-13032 |
| 75 |
2
1/2" |
75.3 |
87.7 |
184.2 |
6.3 |
16.6 |
55.6 |
53.2 |
4 |
140.3 |
MSF-13040 |
| 90 |
3" |
90.3 |
104.2 |
195.8 |
7.2 |
16.8 |
62.6 |
60.1 |
8 |
151.0 |
MSF-13050 |
| 110 |
4" |
110.4 |
126.1 |
235.6 |
8.3 |
20.9 |
110.7 |
75.4 |
8 |
171.5 |
MSF-13063 |
| 125 |
5" |
125.4 |
144.0 |
252.7 |
9.4 |
19.1 |
118.5 |
84.1 |
8 |
211.3 |
MSF-13075 |
| 160 |
6" |
160.5 |
182.7 |
287.7 |
11.9 |
21.0 |
156.3 |
109.8 |
8 |
241.2 |
MSF-13090 |
| 200 |
8" |
200.6 |
227.5 |
339.7 |
14.9 |
20.3 |
198.1 |
134.8 |
12 |
288.2 |
MSF-13110 |
|
|

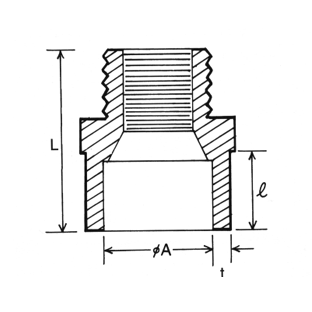

| 外牙接頭 |
|
|
|
MSF-20 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
L |
|
t |
產品代號 |
| 20 |
1/2" |
20.1 |
45.6 |
17.4 |
3.0 |
MSF-20020 |
| 25 |
3/4" |
25.1 |
51.0 |
20.1 |
3.6 |
MSF-20025 |
| 32 |
1" |
32.2 |
56.4 |
23.0 |
4.0 |
MSF-20032 |
| 40 |
1
1/4" |
40.3 |
67.4 |
27.2 |
4.9 |
MSF-20040 |
| 50 |
1
1/2" |
50.3 |
75.2 |
31.9 |
5.7 |
MSF-20050 |
| 63 |
2" |
63.2 |
88.8 |
41.5 |
5.6 |
MSF-20063 |
| 75 |
2
1/2" |
75.2 |
106.2 |
48.0 |
6.7 |
MSF-20075 |
| 90 |
3" |
90.3 |
118.8 |
51.0 |
7.0 |
MSF-20090 |
| 110 |
4" |
110.3 |
131.6 |
65.3 |
8.2 |
MSF-20110 |
|
|
【備註】
- 以上規格表符合CNS13346-K3104「自來水用丙稀晴-丁二烯-苯乙烯
(ABS)接頭配件」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
