| 自來水用管--給水配件 |

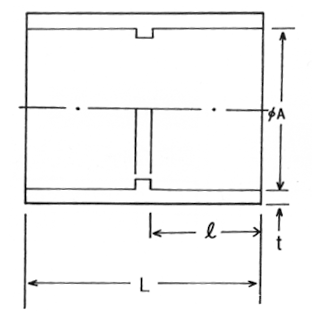

| 管接頭 |
|
|
|
|
MSF-10 |
|
單位 : mm |
| 標稱管徑(mm) |
 |
t |
ΦA |
L |
產品代號 |
| 20 |
1/2" |
20.7 |
2.2 |
20.1 |
45.0 |
MSF-10020 |
| 25 |
3/4" |
23.5 |
2.2 |
25.2 |
50.1 |
MSF-10025 |
| 32 |
1" |
22.1 |
2.4 |
32.2 |
46.8 |
MSF-10032 |
| 40 |
1
1/4" |
26.0 |
3.0 |
40.2 |
53.6 |
MSF-10040 |
| 50 |
1
1/2" |
31.0 |
3.9 |
50.2 |
65.0 |
MSF-10050 |
| 63 |
2" |
37.8 |
4.8 |
63.3 |
77.4 |
MSF-10063 |
| 75 |
2
1/2" |
44.3 |
5.6 |
75.3 |
93.2 |
MSF-10075 |
| 90 |
3" |
51.3 |
6.7 |
90.3 |
106.2 |
MSF-10090 |
| 110 |
4" |
61.3 |
8.2 |
110.2 |
128.6 |
MSF-10110 |
| 160 |
6" |
88.5 |
11.9 |
160.5 |
186.0 |
MSF-10160 |
| 200 |
8" |
106.2 |
14.9 |
200.6 |
229.8 |
MSF-10200 |
|
|

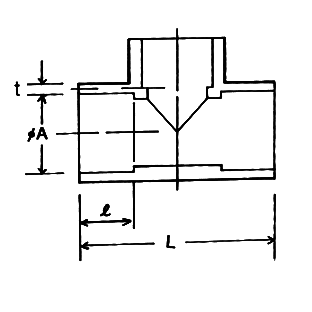

| 等徑三通 |
|
|
|
MSF-11 |
|
單位 : mm |
| 標稱管徑(mm) |
|
t |
ΦA |
L |
產品代號 |
| 20 |
1/2" |
16.1 |
2.2 |
20.2 |
56.5 |
MSF-10020 |
| 25 |
3/4" |
19.0 |
2.5 |
25.2 |
66.4 |
MSF-10025 |
| 32 |
1" |
22.5 |
3.1 |
32.3 |
81.0 |
MSF-10032 |
| 40 |
1
1/4" |
26.3 |
3.0 |
40.3 |
98.1 |
MSF-10040 |
| 50 |
1
1/2" |
31.4 |
3.8 |
50.3 |
119.4 |
MSF-10050 |
| 63 |
2" |
37.9 |
4.8 |
63.2 |
147.0 |
MSF-10063 |
| 75 |
2
1/2" |
49.9 |
6.3 |
75.3 |
182.2 |
MSF-10075 |
| 90 |
3" |
56.7 |
7.1 |
90.3 |
207.2 |
MSF-10090 |
| 110 |
4" |
62.9 |
9.2 |
110.3 |
248.3 |
MSF-10010 |
| 125 |
5" |
68.5 |
9.3 |
125.3 |
277.4 |
MSF-10025 |
| 160 |
6" |
88.9 |
11.9 |
160.5 |
355.1 |
MSF-10060 |
| 200 |
8" |
108.8 |
14.9 |
200.5 |
403.1 |
MSF-10200 |
|
|
【備註】
- 以上規格表符合CNS13346-K3104「自來水用丙稀晴-丁二烯-苯乙烯
(ABS)接頭配件 」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
