| 自來水用管--給水配件 |
| 大小頭 |
|
|
|
|

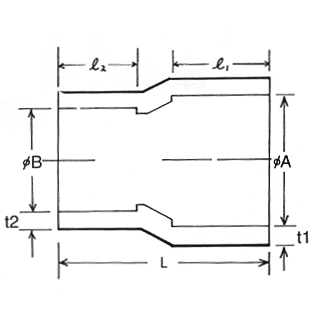

MSF-15 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
ΦB |
L |
 1 |
2 |
t1 |
t2 |
產品代號 |
| 25x20 |
3/4"x1/2" |
25.1 |
20.1 |
41.4 |
19.0 |
16.5 |
3.0 |
2.9 |
MSF-15001 |
| 32x20 |
1"x1/2" |
32.1 |
20.1 |
49.6 |
23.1 |
16.3 |
3.0 |
2.9 |
MSF-15002 |
| 32x25 |
1"x3/4" |
32.2 |
25.2 |
49.3 |
23.0 |
19.0 |
3.0 |
3.0 |
MSF-15003 |
| 40x20 |
1
1/4"x1/2" |
40.2 |
20.1 |
50.0 |
26.6 |
19.0 |
3.1 |
3.0 |
MSF-15004 |
| 40x25 |
1
1/4"x3/4" |
40.1 |
25.1 |
59.4 |
27.3 |
18.2 |
3.1 |
3.0 |
MSF-15005 |
| 40x25 |
1
1/4"x1" |
40.1 |
32.1 |
55.7 |
26.6 |
21.8 |
3.2 |
3.0 |
MSF-15006 |
| 50x20 |
1
1/2"x1/2" |
50.3 |
20.1 |
70.4 |
32.5 |
20.0 |
3.8 |
3.3 |
MSF-15007 |
| 50x25 |
1
1/2"x3/4" |
50.3 |
25.2 |
70.3 |
32.2 |
19.0 |
3.8 |
3.5 |
MSF-15008 |
| 50x32 |
1
1/2"x1" |
50.3 |
32.1 |
70.4 |
31.8 |
22.5 |
3.8 |
3.5 |
MSF-15009 |
| 50x40 |
1
1/2"x1/1/4" |
50.3 |
40.3 |
70.4 |
31.7 |
27.8 |
4.0 |
3.7 |
MSF-15010 |
| 63x25 |
2"x3/4" |
63.1 |
25.1 |
84.1 |
38.8 |
19.1 |
4.7 |
3.6 |
MSF-15012 |
| 63x32 |
2"x1" |
63.1 |
32.1 |
83.6 |
38.7 |
22.7 |
4.7 |
3.9 |
MSF-15013 |
| 63x40 |
2"x1
1/4" |
63.2 |
40.1 |
84.0 |
40.1 |
28.0 |
4.7 |
4.0 |
MSF-15014 |
| 63x50 |
2"x1
1/2" |
63.2 |
50.2 |
93.1 |
38.7 |
31.9 |
4.7 |
4.5 |
MSF-15015 |
| 75x25 |
2
1/2"x3/4" |
75.2 |
25.1 |
96.7 |
44.5 |
19.9 |
5.6 |
3.6 |
MSF-15017 |
| 75x32 |
2
1/2"x1" |
75.2 |
32.1 |
96.7 |
44.6 |
24.0 |
5.6 |
4.1 |
MSF-15018 |
| 75x40 |
2
1/2"x1 /14" |
75.2 |
40.1 |
97.5 |
45.9 |
27.1 |
5.6 |
4.8 |
MSF-15019 |
| 75x50 |
2
1/2"x1 1/2" |
75.2 |
50.2 |
97.0 |
44.5 |
33.7 |
5.6 |
5.0 |
MSF-15020 |
| 75x63 |
2
1/2"x2" |
75.2 |
63.2 |
96.5 |
44.5 |
39.8 |
5.6 |
5.1 |
MSF-15021 |
| 90x25 |
3"x3/4" |
90.1 |
25.1 |
113.7 |
53.1 |
20.1 |
6.7 |
4.0 |
MSF-15023 |
| 90.32 |
3"x1" |
90.3 |
32.1 |
114.0 |
53.8 |
53.8 |
23.3 |
6.7 |
MSF-15024 |
| 90x40 |
3"x1
1/4" |
90.3 |
40.1 |
113.8 |
53.8 |
53.8 |
27.3 |
6.7 |
MSF-15025 |
| 90x50 |
3"x
1 1/2" |
90.2 |
50.2 |
113.2 |
52.8 |
52.8 |
33.7 |
6.7 |
MSF-15026 |
| 90x63 |
3"x2" |
90.3 |
63.4 |
113.6 |
52.9 |
52.9 |
39.8 |
6.7 |
MSF-15027 |
| 90x75 |
3"x2
1/2" |
90.2 |
75.2 |
113.1 |
53.0 |
53.0 |
44.4 |
6.7 |
MSF-15028 |
| 110x32 |
4"x1" |
110.3 |
32.1 |
138.9 |
64.0 |
65.0 |
22.6 |
8.2 |
MSF-15031 |
| 110x50 |
4"x1
1/2" |
110.2 |
50.3 |
139.1 |
64.1 |
64.1 |
33.9 |
8.2 |
MSF-15033 |
| 110x63 |
4"x2" |
110.3 |
63.3 |
139.5 |
64.1 |
64.1 |
39.5 |
8.2 |
MSF-15034 |
| 110x75 |
4"x2
1/2" |
110.2 |
75.1 |
139.1 |
64.2 |
64.2 |
44.7 |
8.2 |
MSF-15035 |
| 110x90 |
4"x3" |
110.2 |
90.2 |
139.5 |
64.1 |
64.1 |
52.3 |
8.2 |
MSF-15036 |
| 125x90 |
5"x3" |
125.4 |
90.1 |
153.0 |
70.0 |
55.0 |
10.1 |
7.8 |
MSF-15037 |
| 125x110 |
5"x4" |
125.4 |
110.3 |
164.5 |
71.7 |
54.1 |
9.3 |
8.2 |
MSF-15038 |
| 160x90 |
6"x3" |
160.4 |
90.3 |
168.0 |
88.7 |
51.0 |
11.9 |
6.7 |
MSF-15039 |
| 160x110 |
6"x4" |
160.5 |
110.4 |
179.0 |
88.3 |
61.0 |
11.9 |
8.2 |
MSF-15040 |
| 160x125 |
6"x5" |
160.5 |
125.4 |
185.8 |
88.4 |
68.5 |
12.0 |
9.3 |
MSF-15041 |
| 200x110 |
8"x4" |
200.6 |
110.4 |
208.6 |
106.0 |
64.5 |
14.9 |
8.4 |
MSF-15042 |
| 200x160 |
8"x6" |
200.6 |
160.3 |
214.5 |
106.1 |
86.0 |
14.9 |
12.2 |
MSF-15043 |
|
【備註】
- 以上規格表符合CNS13346-K3104「自來水用丙稀晴-丁二烯-苯乙烯
(ABS)接頭配件 」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
