| 自來水用管--給水配件 |
| 異徑三通 |
|
|
|
|

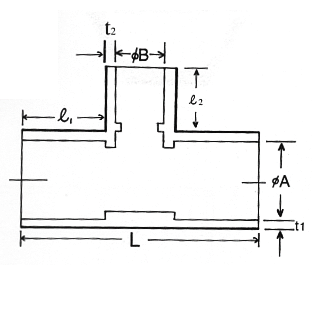

MSF-12 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
ΦB |
L |
 1 |
2 |
t1 |
t2 |
產品代號 |
| 25x20 |
3/4"x1/2" |
25.1 |
20.1 |
66.8 |
19.0 |
17.2 |
2.4 |
2.4 |
MSF-12001 |
| 32x20 |
1"x1/2" |
32.1 |
20.2 |
86.0 |
24.6 |
22.0 |
3.0 |
2.4 |
MSF-12002 |
| 32x25 |
1"x3/4" |
32.2 |
25.1 |
85.7 |
25.1 |
22.1 |
3.2 |
2.6 |
MSF-12003 |
| 40x20 |
1
14/"x1/2" |
40.3 |
20.2 |
101.4 |
28.6 |
23.4 |
3.6 |
2.7 |
MSF-12004 |
| 40x25 |
1
1/4"x3/4" |
40.2 |
25.2 |
101.4 |
28.6 |
22.8 |
3.7 |
2.9 |
MSF-12005 |
| 40x32 |
1
1/4:x1" |
40.2 |
32.1 |
98.2 |
28.5 |
23.3 |
3.7 |
2.6 |
MSF-12006 |
| 50x20 |
1
1/2"x1/2" |
50.2 |
20.2 |
124.1 |
32.8 |
27.8 |
4.2 |
2.4 |
MSF-12007 |
| 50x25 |
1
1/2"x3/4" |
50.3 |
25.2 |
124.2 |
32.7 |
27.7 |
4.2 |
3.0 |
MSF-12008 |
| 50x32 |
1
1/2"x1" |
50.3 |
32.2 |
124.1 |
32.8 |
32.6 |
4.2 |
3.1 |
MSF-12009 |
| 50x40 |
1
1/2x1 1/4" |
50.2 |
40.2 |
124.0 |
32.8 |
32.4 |
4.2 |
3.5 |
MSF-12010 |
| 63x20 |
2"x1/2" |
63.2 |
20.2 |
134.2 |
39.6 |
26.1 |
5.1 |
3.5 |
MSF-12011 |
| 63x25 |
2"x3/4" |
63.2 |
25.2 |
134.2 |
39.3 |
24.6 |
5.1 |
3.5 |
MSF-12012 |
| 63x32 |
2"1/2" |
63.2 |
32.2 |
134.1 |
39.4 |
29.2 |
5.2 |
3.7 |
MSF-12013 |
| 63x40 |
2"x1" |
63.2 |
40.1 |
134.1 |
39.5 |
31.6 |
5.2 |
3.7 |
MSF-12014 |
| 63x50 |
2"1
1/4" |
63.2 |
50.1 |
134.0 |
39.6 |
32.8 |
5.3 |
4.0 |
MSF-12015 |
| 75x20 |
2"x1
1/2" |
75.3 |
20.2 |
182.1 |
47.7 |
28.2 |
6.3 |
3.6 |
MSF-12016 |
| 75x25 |
2
1/2"x3/4" |
75.3 |
25.1 |
182.1 |
48.0 |
30.1 |
6.3 |
4.0 |
MSF-12017 |
| 75x30 |
2
1/2"x1" |
75.3 |
32.2 |
182.3 |
48.2 |
32.2 |
6.2 |
3.6 |
MSF-12018 |
| 75x40 |
2
1/2"x1/ 1/4" |
75.3 |
40.1 |
182.2 |
48.2 |
34.6 |
6.3 |
4.0 |
MSF-12019 |
| 70x50 |
2
1/2"x 1 /1/2" |
75.3 |
50.1 |
182.0 |
47.8 |
39.7 |
6.2 |
4.8 |
MSF-12020 |
| 75x63 |
2
1/2"x2" |
75.3 |
63.1 |
182.2 |
48.1 |
44.7 |
6.2 |
5.1 |
MSF-12021 |
| 90x20 |
3"x1/2" |
90.3 |
20.2 |
214.0 |
51.7 |
29.7 |
7.0 |
3.2 |
MSF-12022 |
| 90x25 |
3"x3/4" |
90.3 |
25.3 |
214.3 |
56.8 |
31.2 |
7.1 |
3.6 |
MSF-12023 |
| 90x32 |
3"x1 |
90.3 |
32.2 |
214.5 |
56.8 |
34.3 |
7.2 |
3.8 |
MSF-12024 |
| 90x40 |
3"x1
1/4" |
90.3 |
40.1 |
214.1 |
56.7 |
31.1 |
7.2 |
3.9 |
MSF-12025 |
| 90x50 |
3"x1
1/2" |
90.3 |
50.3 |
214.2 |
56.7 |
41.3 |
7.2 |
4.9 |
MSF-12026 |
| 90x63 |
3"x2" |
90.3 |
63.4 |
214.2 |
56.8 |
44.4 |
7.4 |
6.0 |
MSF-12027 |
| 90x75 |
3"x2
1/2" |
90.3 |
75.2 |
213.8 |
57.3 |
49.5 |
7.2 |
6.5 |
MSF-12028 |
| 110x32 |
4"1" |
110.4 |
32.2 |
248.8 |
62.6 |
40.0 |
8.3 |
3.6 |
MSF-12031 |
| 110x50 |
4"x
1 1/2" |
110.4 |
50.1 |
249.0 |
62.8 |
50.7 |
8.4 |
5.2 |
MSF-12033 |
| 110x63 |
4"x2 |
110.4 |
63.3 |
248.6 |
62.7 |
50.1 |
8.6 |
5.5 |
MSF-12034 |
| 110x75 |
4"x2
1/2" |
110.4 |
75.3 |
248.6 |
62.6 |
55.2 |
8.3 |
6.3 |
MSF-12035 |
| 110x90 |
4"x3" |
110.4 |
90.6 |
248.6 |
62.6 |
52.2 |
8.5 |
7.4 |
MSF-12036 |
| 125x90 |
5"x3" |
125.3 |
90.1 |
253.6 |
69.3 |
54.9 |
10.0 |
7.6 |
MSF-12037 |
| 125x110 |
5"x4" |
125.4 |
110.3 |
253.9 |
69.8 |
64.3 |
9.9 |
9.0 |
MSF-12038 |
| 160x90 |
6"x3" |
160.4 |
90.8 |
305.1 |
87.5 |
53.3 |
11.9 |
7.4 |
MSF-12039 |
| 160x110 |
6"x4" |
160.3 |
110.1 |
305.1 |
88.6 |
63.8 |
11.9 |
8.2 |
MSF-12040 |
| 200x110 |
8"x4" |
200.6 |
110.4 |
304.2 |
108.7 |
73.6 |
14.9 |
8.2 |
MSF-12042 |
| 200x160 |
8"x6" |
200.6 |
160.5 |
309.2 |
108.5 |
88.7 |
14.9 |
11.9 |
MSF-12043 |
|
【備註】
- 以上規格表符合CNS13346-K3104「自來水用丙稀晴-丁二烯-苯乙烯
(ABS)接頭配件 」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
