| 自來水用管--給水配件 |

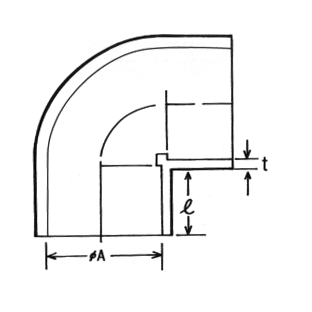

| 90o彎頭 |
|
|
|
|
MSF-13 |
|
單位 : mm |
| 標稱管徑(mm) |
 |
t |
ΦA |
產品代號 |
| 20 |
1/2" |
20.2 |
18.6 |
2.7 |
MSF-13020 |
| 25 |
3/4" |
25.2 |
20.4 |
2.7 |
MSF-13025 |
| 32 |
1" |
32.3 |
22.1 |
2.4 |
MSF-13032 |
| 40 |
1
1/4" |
40.2 |
26.0 |
3.0 |
MSF-13040 |
| 50 |
1
1/2" |
50.2 |
31.2 |
3.8 |
MSF-13050 |
| 63 |
2" |
63.2 |
38.2 |
4.8 |
MSF-13063 |
| 75 |
2
1/2" |
75.3 |
48.4 |
6.4 |
MSF-13075 |
| 90 |
3" |
90.3 |
52.7 |
6.8 |
MSF-13090 |
| 110 |
4" |
110.4 |
63.6 |
8.3 |
MSF-13110 |
| 125 |
5' |
125.4 |
69.0 |
9.3 |
MSF-13125 |
| 160 |
6" |
160.5 |
86.3 |
11.9 |
MSF-13160 |
| 200 |
8" |
20.6 |
108.8 |
14.9 |
MSF-13200 |
|
|

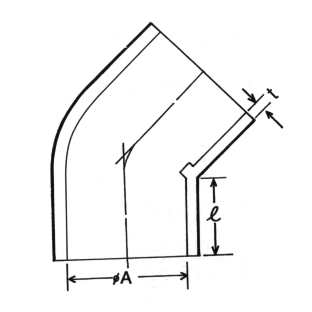

| 45o彎頭 |
|
|
|
MSF-14 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
|
t |
產品代號 |
| 25 |
3/4" |
25.1 |
19.4 |
2.3 |
MSF-14025 |
| 32 |
1" |
32.2 |
22.3 |
2.6 |
MSF-14032 |
| 40 |
1
1/4" |
40.2 |
26.4 |
3.2 |
MSF-14040 |
| 50 |
1
1/2" |
50.3 |
31.3 |
3.8 |
MSF-14050 |
| 63 |
2" |
63.2 |
37.6 |
4.9 |
MSF-14063 |
| 75 |
2
1/2" |
75.2 |
43.6 |
6.0 |
MSF-14075 |
| 90 |
3" |
90.2 |
51.2 |
6.8 |
MSF-14090 |
| 110 |
4" |
110.3 |
61.5 |
8.2 |
MSF-14010 |
| 125 |
5" |
125.4 |
70.6 |
9.3 |
MSF-14025 |
| 160 |
6" |
160.5 |
90.3 |
11.9 |
MSF-14060 |
| 200 |
8" |
200.5 |
109.2 |
14.9 |
MSF-14200 |
|
|
【備註】
- 以上規格表符合CNS13346-K3104「自來水用丙稀晴-丁二烯-苯乙烯
(ABS)接頭配件 」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
